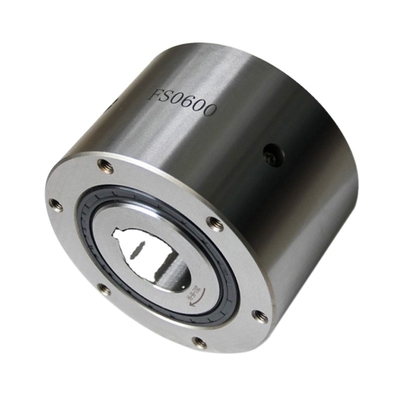

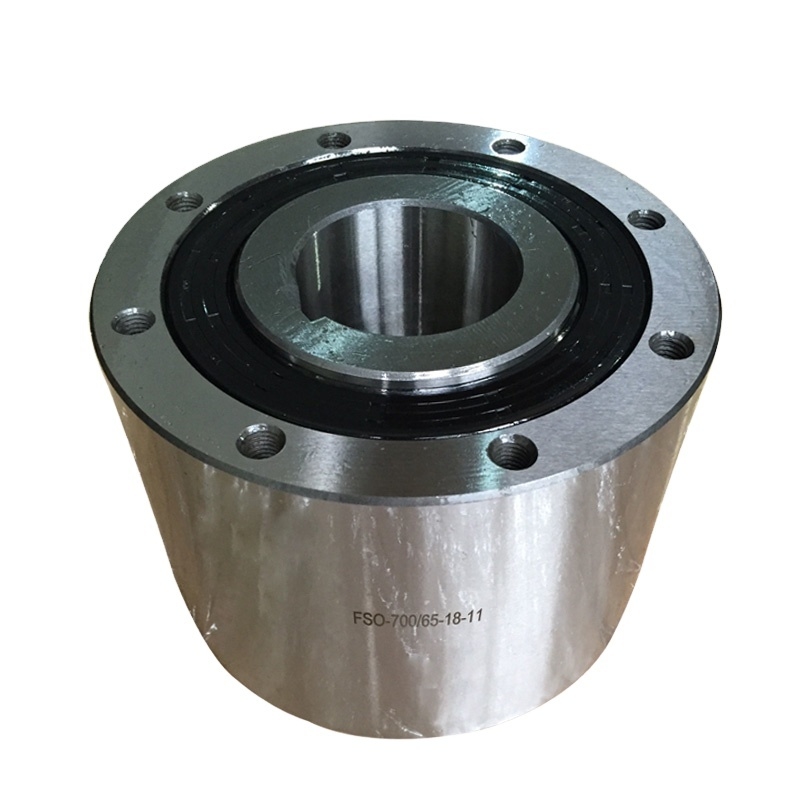

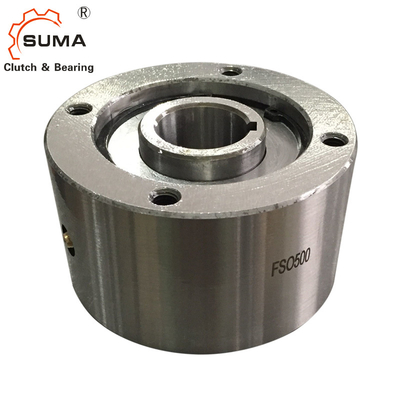

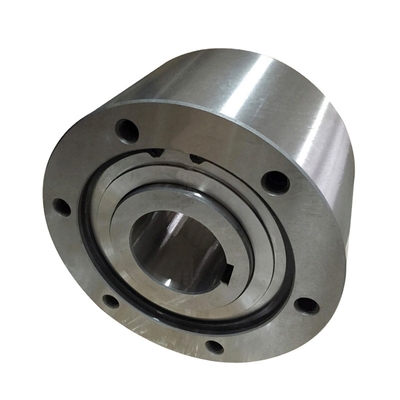

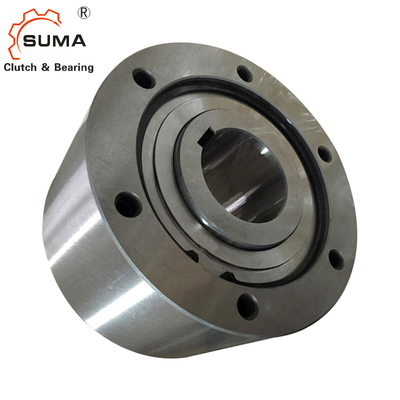

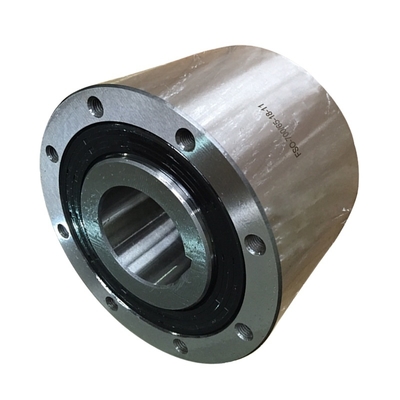

FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors

FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors

  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
  • FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors
পণ্যের বিবরণ:
উৎপত্তি স্থল: জিয়াংসু, চীন
পরিচিতিমুলক নাম: SUMA or OEM
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 2
মূল্য: US$1,000-1,100
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
অভ্যন্তরীণ রেসের গতি: 1350 মিনিট -1 বাইরের রেসের গতি: 500 মিনিট -1
টর্ক: 24408 এনএম ওজন: 71 কেজি
লুব্রিকেশন প্রকার: গ্রীস স্প্রাগ টাইপ: লম্বা স্প্রাগস
ভারবহন সমর্থন: দুটি বল বিয়ারিংস সিল টাইপ: গোলকধাঁধা সীল
বোর সাইজ রেঞ্জ: 600> 50 মিমি, 700> 75 মিমি মাউন্টিং গর্ত: 60 ° + 2 অতিরিক্ত 6 টি গর্ত
সর্বাধিক টর্ক: 2 × টি কেএন ডিজাইনের ধরণ: ফর্মপ্রাগ ইউএসএ
তৈলাক্তকরণ বিকল্প: তেল বা গ্রীস উপলভ্যতা বোর: মেট্রিক বা ইম্পেরিয়াল
উচ্চ গতির নকশা: এইচপিআই মডেল
বিশেষভাবে তুলে ধরা:

HPI 900 sprag type clutch

,

conveyor hold back clutch

,

one way clutch bearing

FSO900 / HPI 900 Hold Back Clutch with Sprag Type Freewheels for Conveyors and Reducers
Product Specifications
Attribute Value
Warranty 1 YEAR
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory
Customized support OEM
Inner race overrunning speed (min-1) 1350
Outer race overrunning speed (min-1) 500
Torque (N.m) 24408
Weight (kg) 71
Lubricated grease
OEM Accept
Delivery 10-15 days
Product name FSO900 / HPI 900
Product Overview
The FSO900 is a one-way hold back clutch with sprag type freewheels, designed for conveyor systems and reducers. This self-contained, sealed unit features bearing support with two ball bearings for reliable operation.
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 0 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 1
Key Features
  • Available in FSO, FS, and HPI 750 to 1027 series
  • Sprag type freewheels with self-contained, sealed design
  • Bearing supported with two ball bearings
  • Delivered oil or grease lubricated according to type
  • Formsprag USA design with tall sprags and multi-radius active surfaces
  • Compensates for eccentricity due to bearing wear
  • FS and HPI types are oil lubricated with standard shaft lip seals
  • FSO type is grease lubricated with special grease seals
  • HPI type designed for high speed indexing applications
  • Available in standard metric bore diameters with custom sizes available
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 2 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 3
Technical Notes
1) T max = 2 × T KN
2) Inner race/outer race
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus 2 extra-holes at 180°
Mounting Example
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 4 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 5 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 6 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 7
Packaging
FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 8 FSO900 HPI 900 Sprag Type Hold Back Clutch for Conveyors 9
