ওয়ান ওয়ে ক্লাচ বিয়ারিং
Created with Pixso. MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity

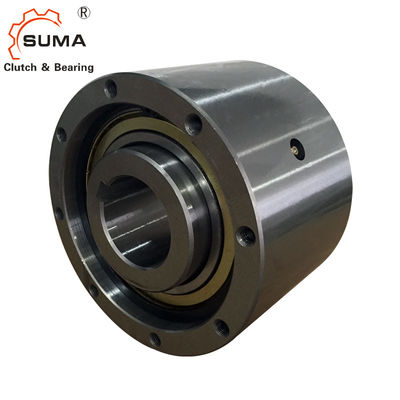

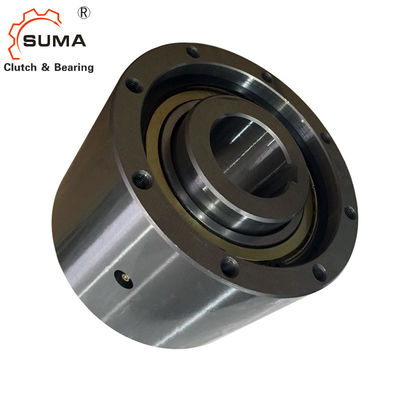

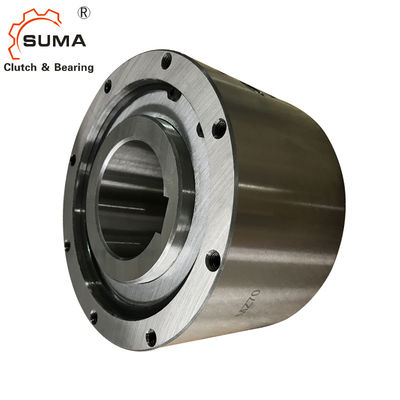

MX35 Cam Clutch Bearing 35mm Bore 235Nm Torque Capacity

ব্র্যান্ডের নাম: SUMA
মডেল নম্বর: এমএক্স 35
MOQ.: 1
বিস্তারিত তথ্য
উৎপত্তি স্থল:
জিয়াংসু, চীন
যথার্থ রেটিং:
পি 0
সীল টাইপ:
সিল
প্রকার:
সিএএম
টর্ক ক্ষমতা:
235 এনএম
সর্বাধিক সূচি:
1200 চক্র/মিনিট
টর্ককে টানুন:
1.36
ওজন:
6.4 কেজি
বোর আকার:
35 মিমি
বাইরের রেস:
125 মিমি
ফিট সহনশীলতা টিপুন:
0.025 মিমি
হাব বোর সহনশীলতা:
এইচ 6 বা এইচ 7
মডেল:
এমএক্স 35
ইনস্টলেশন পদ্ধতি:
প্রেস হইয়া
কীওয়ে ছাড়পত্র:
শীর্ষ ছাড়পত্রের সাথে টাইট ফিট
মাউন্টিং চাপ:
শুধুমাত্র অভ্যন্তরীণ রেস শেষ
বিশেষভাবে তুলে ধরা:

MX35 cam clutch bearing 35mm bore

,

one way clutch bearing 235Nm torque

,

35mm bore clutch bearing with warranty

পণ্যের বর্ণনা
MX35 One Way Roller Clutch Cam Clutch Product Specifications Item MX35 Precision P0 Type cam Bore size (mm) 35 Outer race (mm) 125 Torque Capacity(Nm) 235 Max.Indexing(cycle/min) 1200 Weight (kg) 6.4 Application Elevator, industrial machine and more Installation and Usage Insert the clutch into the hub bore of a pulley, gear, or torque arm and secure with high-tension bolts in the tapped holes. MX Series clutches require a press fit for indexing applications (do not exceed 0
