ওয়ান ওয়ে ক্লাচ বিয়ারিং
Created with Pixso. FE422Z Sprag Type One Way Clutch Bearing 12mm Bore 22mm Outer Dia

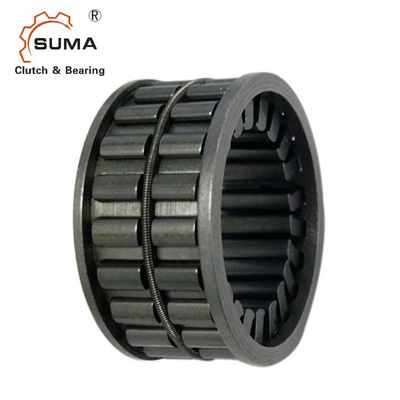

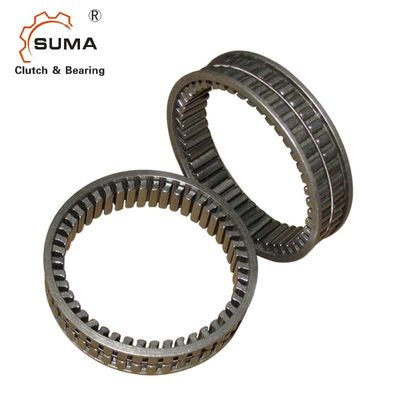

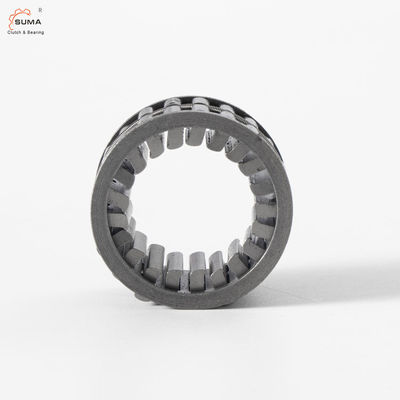

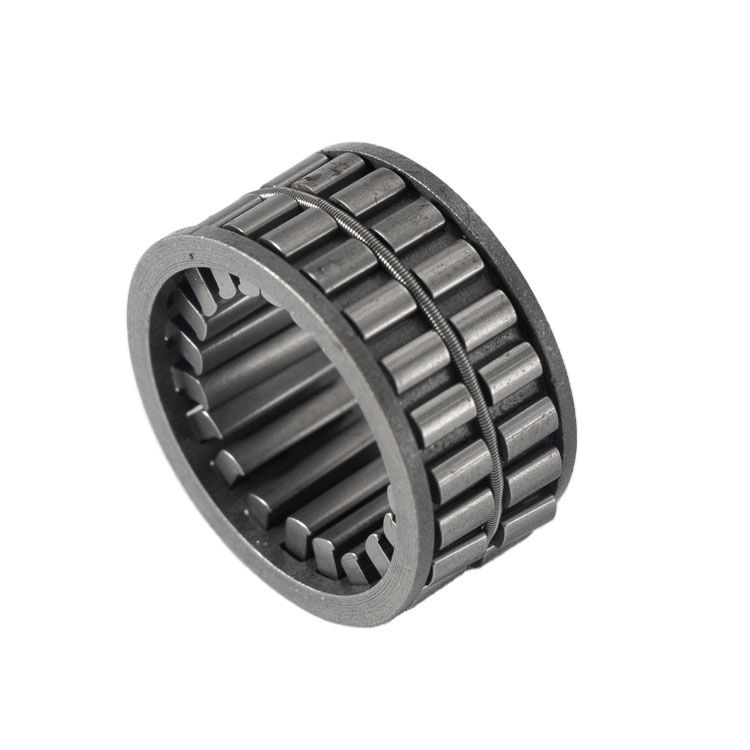

FE422Z Sprag Type One Way Clutch Bearing 12mm Bore 22mm Outer Dia

ব্র্যান্ডের নাম: SUMA
মডেল নম্বর: Fe422z
MOQ.: 2
মূল্য: $2.40-3.50
বিস্তারিত তথ্য
উৎপত্তি স্থল:
জিয়াংসু, চীন
যথার্থ রেটিং:
পি 0
সীল টাইপ:
খোলা
প্রকার:
স্প্রাগ, ফ্রি হুইল ক্লাচ
উপাদান:
ক্রোম স্টিল
টর্ক:
44 এনএম
অলস গতি:
5300 আরপিএম
বোর ব্যাস:
12 মিমি
বাইরের ব্যাস:
22 মিমি
টর্ক ফে 422:
48 এনএম
টর্ক ফে 422 জেড:
44 এনএম
টর্ক ফে 422 জেড 2:
21 এনএম
আইডলিং স্পিড ফে 422:
5300 আরপিএম
আইডলিং স্পিড ফে 422 জেড:
5300 আরপিএম
আইডলিং স্পিড ফে 422 জেড 2:
5300 আরপিএম
সর্বাধিক ঘূর্ণন:
10000 আরপিএম
বিশেষভাবে তুলে ধরা:

12mm bore one way clutch bearing

,

22mm outer diameter sprag clutch bearing

,

FE422Z one way clutch bearing

পণ্যের বর্ণনা
FE422Z FE 422 Z Sprag Type One Way Clutch Bearing FE 442 Z2 FE series Freewheel-clutches transmit or support torque moment by friction contact in one direction and permit idling in the opposite direction. Applications Indexing elements: Change from oscillating to intermittent rotary motion. Backstops: Prevent self-reversing due to load condition when the machine is not activated. Overrunning clutches: Maintain driven unit activated during slowdown, or switch to higher speed
